    Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation

    Ask Lasest Price
    Brand Name : Zhufeng
    Model Number : RVSP
    Certification : ISO, CCC, CE, RoHS
    Supply Ability : 30000 Kilometer/Kilometers per Month
    Price : $0.29 - $1.35/meters
    • Product Details
    • Company Profile

    Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation

    Product Description
    Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation
    Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation

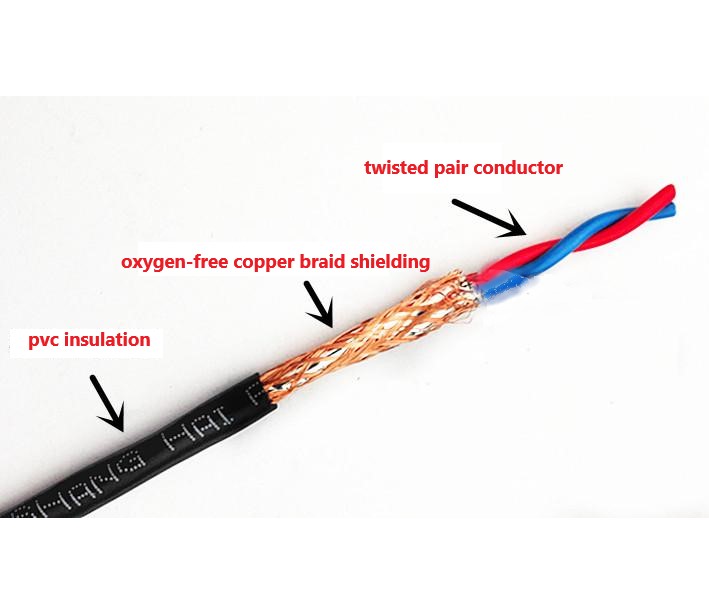

    RVSP cable wire characteristics

    RVSP series adds a layer of copper wire shielding network on the basis of RVS, so it has a better effect in reducing signal transmission loss and shielding external interference than RVS series. However, due to the addition of copper wire shielding network, its cost is much higher than RVS series.
    It is often used where the transmission of signals is very demanding.
    The long-term permissible working temperature of PVC insulated cables shall not exceed 70℃, and the laying temperature of cables shall not be lower than 0℃.
    The allowable bending radius of the cable whose outer diameter (D) is less than 25mm should not be less than 4 times of the outer diameter of the cable; The allowable bending radius of the cable with an outer diameter (D) of 25mm and above shall not be less than 6 times of the outer diameter of the cable.
    The product is suitable for the fixed laying of power, daily electric appliance, instrument, instrument, telecommunication equipment, lighting circuit and automatic device, flexible cord for connection, flexible cord for installation and shielded wire for the occasion with strong interference.

    Specification
    Product name
    Twisted-pair shielded cable
    Insulation
    PVC
    Model
    RVSP
    Temperature
    70°C
    Rated voltage
    450/750V
    Standard
    GB9330-1998
    Specification
    0.75/1/1.5/2.5mm²
    Sheath
    PVC
    Core number
    2/3/4 /5 twisted pair core
    Shielding
    oxygen-free cooper braided shield
    Application
    Connecting line of control, monitoring loop and protection line
    Conductor
    high quality Oxygen-free copper
    Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation






    Pure Oxygen-Free Copper Conductor to Ensure Conductivity.






    Environmentally-Friendly PVC Material with Excellent Insulation Performance, Scratch Resistance, Abrasion Resistance, Great Toughness.
    Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation
