    JB8734.2 Standard 2 or 3 Core Flat Cable with Copper Core PVC Insulated Direct Supply

    Ask Lasest Price
    Brand Name : ZHUFENG
    Model Number : BVVB
    Supply Ability : 20000 Kilometer/Kilometers per Month
    Price : $0.16/meters 1000-9999 meters
    • Product Details
    • Company Profile

    JB8734.2 Standard 2 or 3 Core Flat Cable with Copper Core PVC Insulated Direct Supply

    Product Description
    JB8734.2 Standard 2 or 3 Core Flat Cable with Copper Core PVC Insulated Direct Supply
    JB8734.2 Standard 2 or 3 Core Flat Cable with Copper Core PVC Insulated Direct Supply

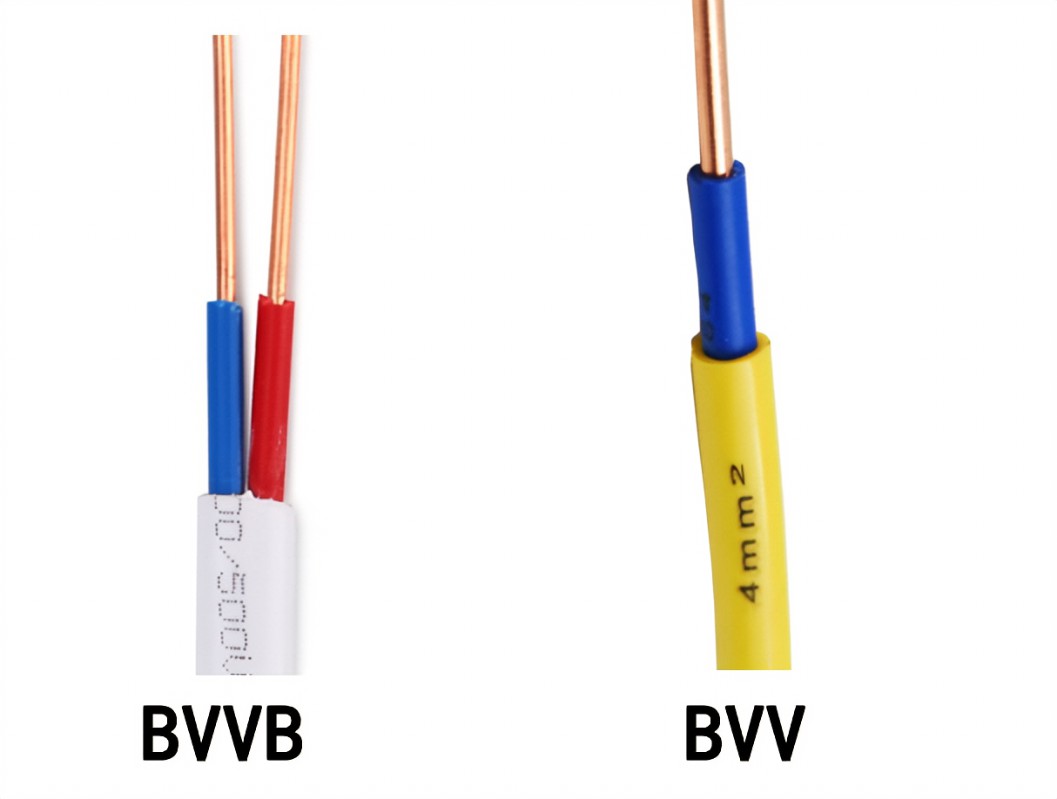

    BVVB cable wire characteristics

    PVC insulated wire is not only simple in structure and convenient in use, but also has good electrical insulation, physical and mechanical properties, non-flammability, compression resistance, chemical resistance, impact resistance and moisture resistance.

    The laying temperature of the wire is not less than 0℃, and the maximum working temperature is allowed for a long time (70℃). The current transmission capacity is large.

    BVVB wires produced by Zhufeng Cable Daming Co., Ltd also have the following advantages:

    1. good insulation:
    PVC keeps the original good insulation characteristics of PE, and the insulation resistance is further increased. The tangent of the dielectric loss Angle is very small and is not affected by temperature.

    2. no delay combustibility:
    PVC has a good flame retardant type, its flame retardant value of more than 40, so it is widely used in fire protection
    applications.

    3. Better mechanical properties:
    Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of PVC have been improved, so as to make up for the shortcomings of PE vulnerable to environmental stress and cracking.

    4. Chemical resistance:
    PVC has strong acid and alkali resistance and oil resistance (resistance to concentrated hydrochloric acid, concentration of 90% sulfuric acid, concentration of 60% nitric acid, and concentration of 20% sodium hydroxide).

    Specification
    Product name
    flat Copper conductor PVC insulated and sheathed power cable
    Insulation
    PVC
    Model
    BVVB
    Temperature
    70°C
    Rated voltage
    300/500V 450/750V
    Standard
    JB/T 8734.2
    Specification
    2*1.5mm²/2*2.5mm²/2*4mm²/2*6mm²
    Sheath
    PVC
    Application
    It is commonly used for open wiring, electrical equipment and building indoor wiring
    Conductor
    copper
    JB8734.2 Standard 2 or 3 Core Flat Cable with Copper Core PVC Insulated Direct Supply
    Pure Oxygen-Free Copper Conductor to Ensure Conductivity.
    JB8734.2 Standard 2 or 3 Core Flat Cable with Copper Core PVC Insulated Direct Supply
    Environmentally-Friendly PVC Material with Excellent Insulation Performance, Scratch Resistance, Abrasion Resistance, GreatToughness.
