Bare ACSR/AAC/AAAC High Voltage Overhead Cable with Steel Reinforcement and NO Jacket

Product Categories

Zhufeng Cable Daming Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

AAAC High Voltage Overhead Cable with Steel Reinforcement and NO Jacket

Ask Lasest Price
Brand Name :	Zhufeng
Model Number :	ACSR Cable
Certification :	ISO, CCC, CE, RoHS
Price :	$2.39/meters 500-4999 meters

Add to Cart

Product Details
Company Profile

Bare ACSR/AAC/AAAC High Voltage Overhead Cable with Steel Reinforcement and NO Jacket

Product Description

Generally, there is one aerial bare wire for each phase. For 220kV and above lines, phase splitting wire is adopted in order to reduce corona loss and corona interference due to large transmission capacity, that is, two or more wires are used for each phase. Adopting split wire can transmit large electric energy, and the electric energy loss is less, and it has better anti-vibration performance. Conductors are often subjected to various natural conditions in operation, and must have good conductivity, high mechanical strength, light weight, low price, strong corrosion resistance and other characteristics. Because China's aluminum resources are richer than copper, and the price difference between aluminum and copper is large, so almost all steel core aluminum stranded wire. Each conductor shall have only one connector in each distance. Conductors and lightning conductors shall not have connectors in crossing highways, rivers, railways, important buildings, power lines and communication lines.

Specification

item	value
Place of Origin	China
	Hebei
Brand Name	Zhufeng
Model Number	ACSR Cable
Insulation Material	NO
Type	High Voltage
Application	Overhead Electrical Power Transmission
Conductor Material	Aluminum
Jacket	NO
Material Shape	Round Wire
Range of Application	Power Transmission
Specification	10-1500² , 16-1120² , 4-200²
Voltage	Various grade voltage
Color	Silver or customized
Number of Cores	1core/2core/3core/4core
Certification	ISO, CCC, CE, RoHS, VDE

1.Aluminum conductor
2.Concentric-Lay-Stranded
3.Coated Steel Reinforced
4.ASTM,BS,CSA,DIN,IEC etc. Standards
Following the American Standards ( ASTM )
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

Application

The bare conductor: ACSS, AAC, AAAC, ACSR, AACSR, ACAR and Galvanized steel wire, are used in overhead
electrical power transmission and distribution lines with various grade voltage.

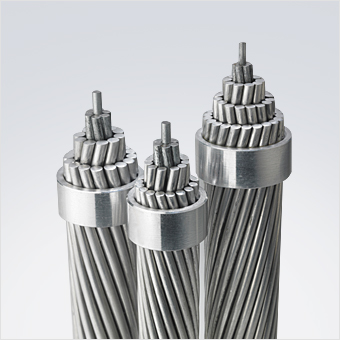

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel
core wire. ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of
aluminum wire.

Standards
Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC)
, BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN

General requirements for overhead lines

1) The aerial line should be widely used steel core aluminum stranded wire or aluminum stranded wire. The section of high pressure
overhead wires shall not be less than 50 square mm, the section of core wires shall not be less than 35 square mm, and the section
of empty wires shall not be 16 square mm.
2) The cross section of wire should meet the requirement of maximum load.
3) The selection of section should also meet the voltage loss is not more than 5% of the rated voltage (high voltage overhead
line), or 2%~3% (high visual requirements of the lighting line), and should meet a certain mechanical strength.

Laying principles for overhead lines
1) In the construction and completion acceptance must follow the relevant regulations, to ensure the quality of construction and
the safety of the line. 2) Reasonable choice of path, short path, less corner, convenient transportation, and the building should
keep a certain safe distance.
3) According to the requirements of relevant regulations, it is necessary to ensure that the overhead line and the earth and other
facilities within a safe distance.
