    CE Certified LOW VOLTAGE 100-350 MCM Aluminum Conductor Electric Cable for DC/AC Power

    Ask Lasest Price
    Brand Name : Zhufeng
    Model Number : VLV
    Price : $2.02/meters 1000-4999 meters
    • Product Details
    • Company Profile

    CE Certified LOW VOLTAGE 100-350 MCM Aluminum Conductor Electric Cable for DC/AC Power

    Product Description
    CE Certified LOW VOLTAGE 100-350 MCM Aluminum Conductor Electric Cable for DC/AC Power
    CE Certified LOW VOLTAGE 100-350 MCM Aluminum Conductor Electric Cable for DC/AC Power
    VLV cable is a common power cable and its long-term working temperature shall not exceed 70℃, and laying temperature shall not be lower than 0℃; Max. admissible temperature of conductor during short circuit (5s Max duration) is 160℃.

    VLV cable generally used as power transmission hub, often buried in the soil or laid in indoor, trench, tunnel, line insulation distance is small, no tower, covers less land, basically does not cover surface space.

    The only difference between VV cable and VLV cable lies in the conductor material, the former is copper conductor, the latter is aluminum conductor.

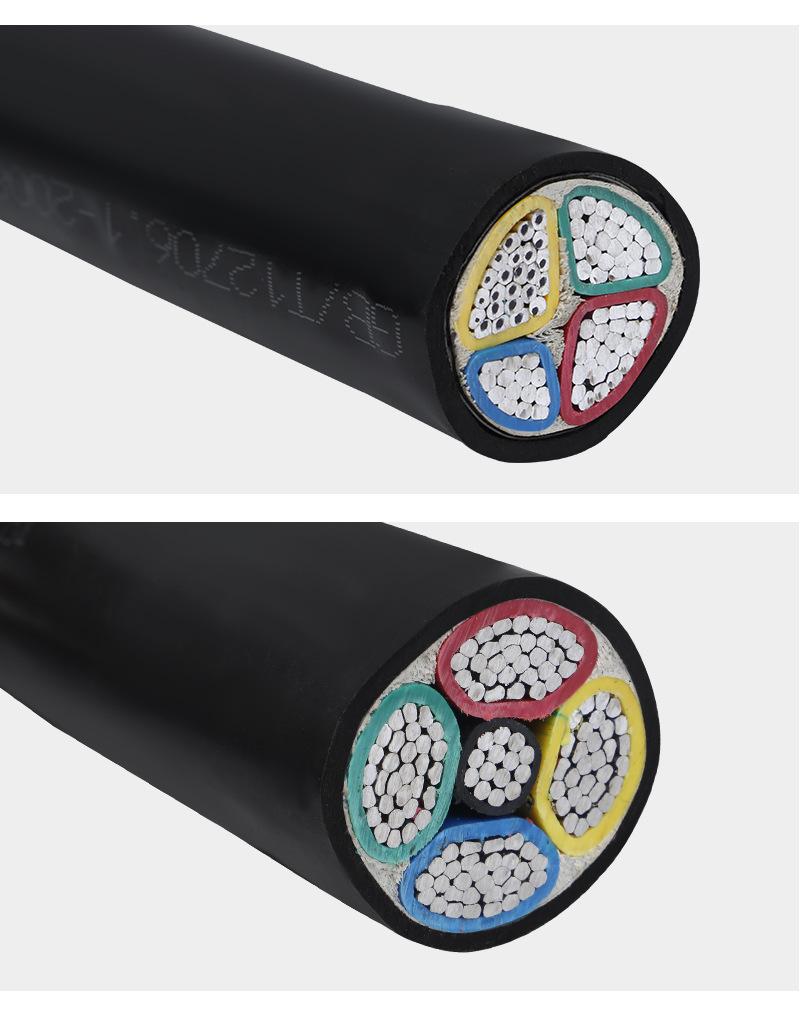

    CE Certified LOW VOLTAGE 100-350 MCM Aluminum Conductor Electric Cable for DC/AC Power

    copper conductor cable
    CE Certified LOW VOLTAGE 100-350 MCM Aluminum Conductor Electric Cable for DC/AC Power

    aluminum conductor cable
    Specification
    Product name
    AL conductor PVC insulated and sheathed power cable
    Insulation
    PVC
    Model
    VLV
    Temperature
    70°C
    Rated voltage
    0.6/1kv
    Standard
    GB/T12706-2008/IEC60502
    Specification
    10-600mm²
    Sheath
    PVC
    Core number
    1-5
    Application
    For laying indoors, in tunnels and pipelines
    Conductor
    ALUMINUM
    Armour
    STA (optional)
