| Brand Name : | ZHUFENG |
| Model Number : | ZR-KVVP |
| Price : | $5.69/meters 500-4999 meters |
Type | Designation | Main Application |
KVV | Copper conductor PVC Insulated and sheathed control cable. | For laying indoors, in trenches and in duals, for fixed
installation. |
KVVP2 | Copper conductor PVC Insulated and sheathed control cable with
copper tape shield. | For laying indoors, in trenches and in duals, for fixed
installation. |
KVV22 | Copper conductor PVC Insulated and sheathed control cable with
steel tape armoured. | For laying indoors, in trenches and in duals, and in groud, able to
withstandheavier mechanics lorce, and for fixed installation. |
KVVRP KVVR | Copper conductor PVC Insulated flexible control cable. | For laying indoors, movable and flexible. |
ZR-KVV | Copper conductor PVC Insulated and sheathed flame retardant control
cable. | For laying indoors, in trenches and in duals, for fixed
installation. The cable should be flame retardants. |
ZR-KVVP2 | Copper conductor PVC Insulated and sheathed flame retardant control
cable with steel tags shield. | For laying indoors, in trenches and in duals, for fixed
installation. The cable should be flame retardants. |
ZR-KVV22 | Copper conductor PVC Insulated and sheathed flame retardant control
cable with steel tape armoured. | For laying indoors, in trenches and in duals and underground, the
cable should be flame retardants and able to bear beavier extermal
mechanical lorce,and for fixed installation. |
ZR-KVVRP ZR-KVVR | Copper conductor PVC Insulated and sheathed flame retardant
flexible control cable. | For laying indoors, and the cable should be flame retardant
flexible and movable. |

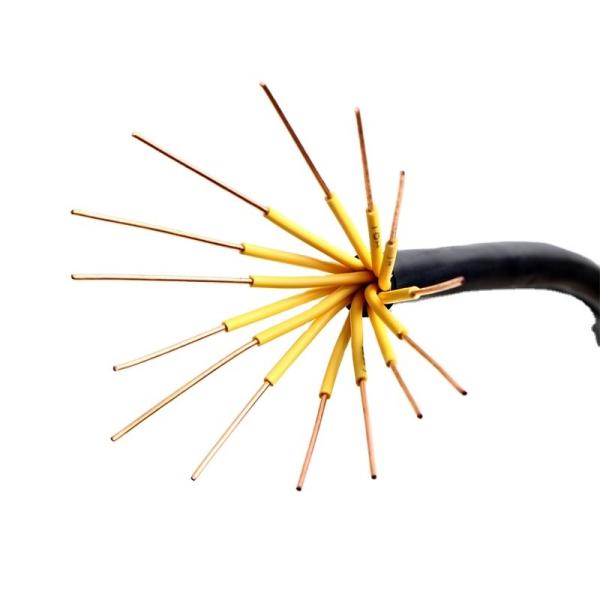

product name | Copper conductor PVC insulated and sheathed flame retardant control
cable | model number | ZR-KVVP |
specification | 0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm² | core number | 7-61/4-61/4-14/4-10 |
standard | GB/T9330-2008 | application | Suitable for control, monitoring loop and protection line, etc |
conductor material | Copper | color | black or custom |
insulation | PVC | jacket | PVC |
rated voltage | 450/750V | armour | / |
|
|
